The structure is designed with reduced weight for ease of handling and assembly.

A LIFESPAN OF OVER 20 YEARS.

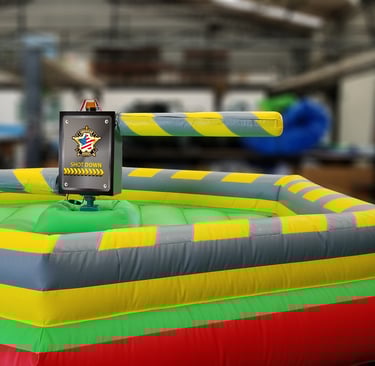

Shot-Down Clock

6 PLAYERS GAME

The set is composed of 6 modules weighing a total of 490 lb.

The operator can adjust the intensity of the movement and change the direction of needle rotation. If a participant falls, they are eliminated, and the movement can be stopped.

1.BASE: This is where the central box with the two arms is placed. It features a 1 HP motor that generates the rotation and counter-rotation.

2.SUPPORTING TUBES: These tubes support the base. They are embedded and fastened with a square to the base, forming a cross on the floor to provide stability to the base.

3.THE CENTRAL BOX AND ARMS: The central box features a mechanical structure of tubes covered by a folded sheet. A 2 cm thick polyester membrane is attached to this structure, and two metal arms, each covered with 10 cm of polyester for added safety, are also attached to the central box.

4.COMMAND: This unit includes two inverters to adjust both rotation speed and direction, along with two switches to operate the beacon and siren. The inverters also protect the motor and feature a differential circuit breaker, a thermomagnetic breaker, a main power switch, and a large red emergency stop button.

5.INFLATABLE MATTRESS: A 16.5 x 16.5 ft hexagonal mattress equipped with 19.7-inch high safety rails. Made from first-quality 18 oz vinyl.

6.BLOWER: 110V B-air blower with 1.5HP to inflate the mattress.
